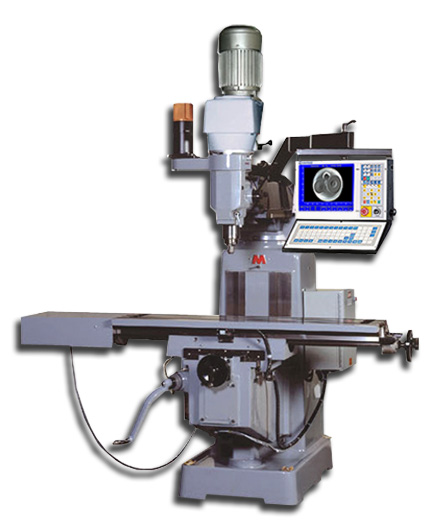

| 3VK
2 Axis CNC |
Specifications |
| Travels
X, Y, Z |
31", 14.5 ",
5 " (4" CNC) |
| Knee
Travel |
16" |
| Work Table |
50" x 10" |
| Spindle
Taper |
R8 |
| Spindle
Motor |
3 Hp |
| Spindle
Speed |
70 to 5000 rpm |
| Spindle
Hi / Lo |
Hi and Lo range
for torque multiple |
| Spindle
Quill Diameter |
3.375" |
| Spindle
Center to Column |
6.875" to 27.875" |
| Foot Print
(floor space) |
112L ",57
W ",85
H " |
| Weight |
3100 lbs |
| Power |
208-240 3 Phase AND
220 single phase |
| Machine |
Standard
Features |
| High Accuracy |
Laser tested for accuracy
standard. |
| Spindle
Bearings |
High performance Class
7 Spindle Bearings |
| Ballscrews |
High Precision Ground
double nut Ballscrews |
| XYZ axis
ways |
Hardened & Ground
w/Turcite B |
| Table
Saddle |
Wide Y axis
saddle and Large Knee design |
| Casting
Design |
FEA Finite Element
Deign, Maximum Rigidity. |
| Quill |
Chrome Plated for
long term reliability |
| Casting |
Meehanite Cast Iron
for Max Rigidity and damping |
| Lube |
One shot Lubrication |
| Coolant |
Programmable Coolant
On/Off built in sump |
| CNC
Control |
Standard
Features |
| Programming |
Conversational, G
codes, CAD/CAM ready |
| Conversational |
Large selection of
canned cycles, teach mode, math help, graphics, cutter comp and
much more.. |
| Screen |
15" Color LCD w/ non
glare coating |
| Operator
controls |
Dedicated Jog and
control buttons |
| Servo
Motors |
AC Digital Servo
motors w/ auto tuning |
| Block
Throughput |
Advanced High Speed
Block Throughput |
| Lookahead |
2000 line Accel/Decell
cutter lookahead |
| 3D machining |
XYZ High Speed Processing
standard |
| File Transfer |
USB 2.0 and Ethernet
Lan |
| Program
Storage |
Internal Hard Drive
stores programs onboard. |
| Keyboard |
Full size qwerty PC
keyboard |
| User Interface |
Fill in the blank
quick Set part and tool setup screens |
| Tool Check |
One button stop and
restart job at any point |
| Graphics |
Advanced G code backplot
with cutter comp moves, 2D and 3D views. Display while programming
or machining, shows cutters position. |
| Digital
Read Out |
Displays in Inches
or MM & Distance to go |
| Spindle
Speed |
Programmable spindle
speed with override |
| Homing |
Auto home remembers
part zero positions |
| Travel
limits |
Hard and Software
travel limits |
| Utilities |
Backup & Restore setup
and programs, Import/Export files, Message Logs |
| Maintenance |
Backlash compensation,
Drag plot |
| Future
proof |
Software Updateable |
| Warranty |
1 year Warranty on
parts. (service contracts avail.) |
| K3FLC |
Options |
| Quill
DRO |
Z axis quill Scale
and Readout for manual use |
| Tool Change |
Power Draw bar |
| Spindle
motor |
5 Hp |
| Coolant |
Auto Mist Coolant
system |
| 4th
axis Rotary Tables |
Several sizes of Rotary
Tables available |
| 4th axis
pre-wire |
4th amp,connector
and software for future use |
| Digitizing |
2D and 3D Digitizing,
Copy and Cut. |
| Auto
Tool Measurement |
Automatically sets
tool offsets, w/Batch ATC feature |
| Jogging
Handwheel |
MPG handwheel with
coil cord, XYZW selector |
| Probing
Cycles |
Automatically sets
parts zero positions |
| Coordinate
System Rot. |
Rotate machine coordinates
to match part or vise |
| Sealed
Qwerty Keyboard |
Full size waterproof
qwerty keyboard. |
| Engraving |
Engrave Letters, numbers,
symbols, import dxf. |
| Work
Cord. Systems |
18 Unique part zero
locations, w/ memory |
| Part program
size |
Unlimited program
size for 3D work. (large 1Mb is std.) |
| Vacu
Vise |
Clamps hard to hold
parts, flats, plastics |
| DXF
converter |
CAD to CNC, DXF to
G code converter. |
| High Voltage
Operation |
440 three phase input
voltage |
| Offline
Programming |
Intercon Conversational
for you Desktop PC |
| CNC Training |
On site CNC Training,
programming and setup |
| Service
Contract |
1 yr.
Service Contract, includes 1 day training. |
|
|
