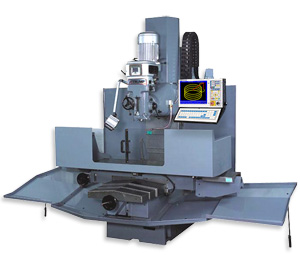

| E6FC
CNC Bed Mill |
Specifications |
| Travels
X, Y, Z |
41.7", 22 ",
24 " |
| Work Table |
52" x 14" |
| Spindle
Taper |
CAT 40 or BT 40 |
| Spindle
Motor |
6 Hp Inverter |
| Spindle
Speed |
40 -4000 with Hi
Lo range torque multiple |
| Spindle
Nose to Table |
6" - 30 " |
| Spindle
Quill |
4-5/16" diameter,
chrome plated |
| Spindle
Center to Column |
23.5" |
| Foot Print
(floor space) |
L 90 ", W
85 ",
H 90 " |
| Weight |
6270 lbs |
| Power |
208-240 3 Phase
OR 220 single phase |
| Machine |
Standard
Features |
| High Accuracy |
Laser tested for accuracy. |
| Spindle
Bearings |
High performance Class
7 Spindle Bearings |
| Ballscrews |
Precision Ground double
nut |
| XYZ axis
ways |
Hardened & Ground
w/Turcite B |
| Table
Saddle |
Wide Y axis
saddle with box way |
| Way design |
Dovetail on X , Box
on Y and Z |
| Casting
Design |
FEA Finite Element
Deign, Maximum Rigidity. |
| Casting |
FC30 Meehanite annealed
and stress relieved. |
| Hi / Lo
Range Spindle |
2 speed gearing
for Maximum Torque |
| Lube |
Central Auto Lube
system |
| Work Light |
Built-in Quartz work
light |
| Coolant |
Built in Coolant system |
| CNC
Control |
Standard
Features |
| Programming |
Conversational,
Std. G codes, & CAD/CAM ready |
| Conversational |
Large selection of
canned cycles, teach mode, math help, graphics, cutter comp and
much more.. |
| Screen |
15" Color LCD w/ non
glare coating |
| Operator
controls |
Dedicated Jog and
control buttons |
| Servo
Motors |
Digital Servo motors
w/ auto tuning |
| Block
Throughput |
Advanced High Speed
Block Throughput |
| Lookahead |
2000 line Accel/Decell
cutter lookahead |
| 3D machining |
XYZ High Speed Processing
standard |
| File Transfer |
USB 2.0 and Ethernet
Lan |
| Program
Storage |
Internal Hard Drive
stores programs onboard. |
| Keyboard |
Full size qwerty PC
keyboard |
| User Interface |
Quick Set part
and tool setup screens |
| Tool Check |
One button stop and
restart job at any point |
| Graphics |
Advanced G code backplot
with cutter comp moves, 2D and 3D views. Display while programming
or machining, shows cutters position. |
| Digital
Read Out |
Displays in Inches
or MM & Distance to go |
| Homing |
Auto home remembers
part zero positions |
| Travel
limits |
Hard and Software
travel limits |
| Utilities |
Backup & Restore setup
and programs, Import/Export files, Message Logs |
| Maintenance |
Backlash compensation,
Drag plot |
| Future
proof |
Software Updateable |
| Warranty |
1 year Warranty on
parts. (service contracts avail.) |
| E6FC |
Options |
| 4th
axis Rotary Tables |
Several sizes of Rotary
Tables available |
| 4th axis
pre-wire |
4th amp,connector
and software for future use |
| Digitizing |
2D and 3D Digitizing,
Copy and Cut. |
| Auto
Tool Measurement |
Automatically sets
tool offsets, w/Batch ATC feature |
| Jogging
Handwheel |
MPG handwheel with
coil cord, XYZW selector |
| Probing
Cycles |
Automatically sets
parts zero positions |
| Coordinate
System Rot. |
Rotate machine coordinates
to match part or vise |
| Sealed
Qwerty Keyboard |
Full size waterproof
qwerty keyboard. |
| Engraving |
Engrave Letters, numbers,
symbols, import dxf. |
| Work Cord.
Systems |
18 Unique part zero
locations, w/ memory |
| Part program
size |
Unlimited program
size for 3D work. Note 1Mb std. |
| Vacu
Vise |
Clamps hard to hold
parts, flats, plastics |
| DXF
converter |
CAD to CNC, DXF to
G code converter. |
| High Voltage
Operation |
440 three phase input
voltage |
| Tool Change |
Maxi Torque Power
Draw bar |
| Chip Guard |
Table Chip Guard |
| Offline
Programming |
Intercon Conversational
for you Desktop PC |
| CNC Training |
On site CNC Training
available. |
| Service
Contract |
1 Year Service Contract,
includes 1 day training. |
|
|
